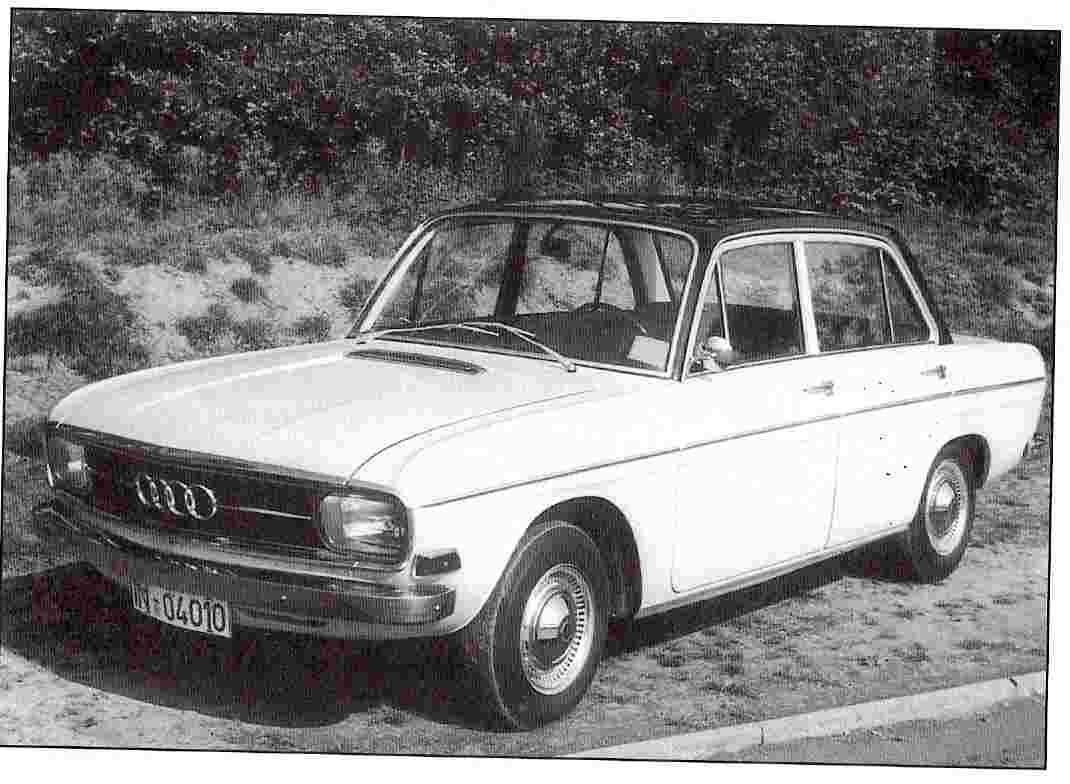

1973Audi100LS Posted September 20, 2006 Posted September 20, 2006 (edited) AUTO UNION AUDI D-B Heron 1965 After 26 years the Audi name was resurrected, although much of the car was not altogether new. The conservatively-styled body, similar to the DKW F-102, was a move up-market from the curvy two-stroke models. Where the Audi differed was in its engine design. Front wheel drive was retained, but now there was a four cylinder, four-stroke engine providing the power. Designed by Daimler-Benz, it featured some very advanced engineering. Instead of the combustion chambers being in the cylinder head, they were in the piston crowns, with a very high-turbulence induction design allowing a high compression ratio of 11.2:1 to be used. The layout, with the engine hung out ahead of the front axle line, and with the four-speed allsynchromesh gearbox in unit with the final drive, was to become an Audi feature for many years. The move to a four stroke engine gave Audi a clean break from the two-stroke image created by DKW It quickly moved to re-occupy the ground left vacant by the middle-class low-volume, premium-priced cars of the pre-war Auto Union. BODY Saloon; 214 doors; 5 seats; weight 980kg (21561b). ENGINE 4 cylinders, in line; front; 80.0x84.4mm, 1696cc; compr 11.2:1; 54kW (72bhp) @ 5000rpm; 31.8kW 11 (31.8bhp/l); 127Nm (13.0mkp) @ 2800rpm. ENGINE STRUCTURE Ohv; 2 valves per cylinder; 1 chain driven side camshaft; aluminium alloy cylinder head; cast iron block; 5 bearing crankshaft; Solex 38 PDSI carburettor; water cooled. TRANSMISSION Front wheel drive; 4 speed; spiral bevel final drive, 3.888. CHASSIS DETAILS Steel unitary construction; independent front suspension, wishbones, torsion bars; rear suspension, torsion beam axle, trailing arms, Panhard rod, torsion bars; front anti-roll bar; telescopic dampers; disc front, drum rear brakes; single braking circuit; rack and pinion steering: 165/13 tyres, 4.5in rim width. DIMENSIONS Wheelbase 249.0cm (98.0in), front track 1340.0cm (52.8in). rear track 133cm (52.4in), ground clearance 16.0cm ((6.3in). turning circle 10.9m (36.0ft), overall length 438.0cm (l72.4in). overall width 163.0cm (64.2in). overall height 146.0cm (57.5in). PERFORMANCE Maximum speed 92mph (148kph); 29.0kph (18.0mph @ 1000rpm; 18.1kg/kW (13.6kg bhp); average fuel consumption 33.6mpg (8.41/100km). Source: The Audi File Edited September 21, 2006 by 1973Audi100LS
